Here are the results for your location. The transmitter database was last updated on June 7, 2013. For more information about these plots and how to interpret them, please check out the Signal Analysis FAQ.
If you would like to share these results with others, this page can be referenced as:
http://www.tvfool.com/?option=com_wrapper&Itemid=29&q=id%3d5ed6969372a094
To ask for help from other TV Fool members, post this link in a thread HERE.
To start over, click here.

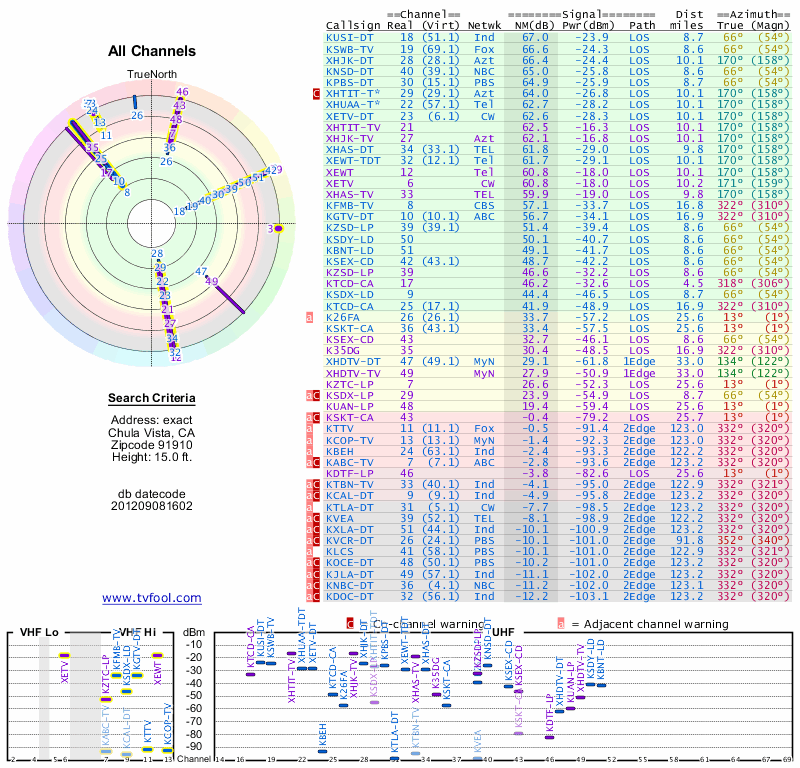

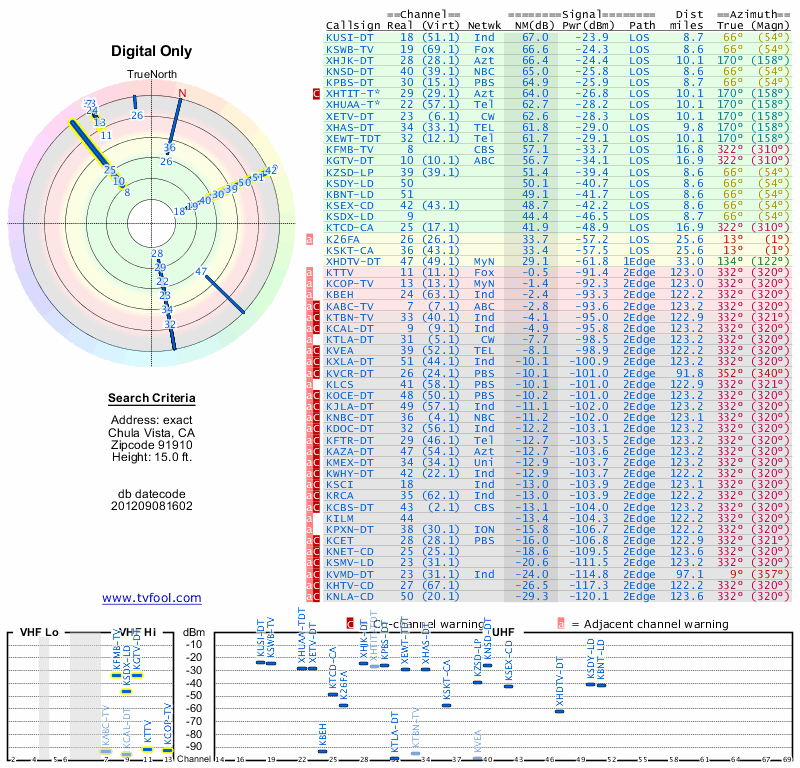

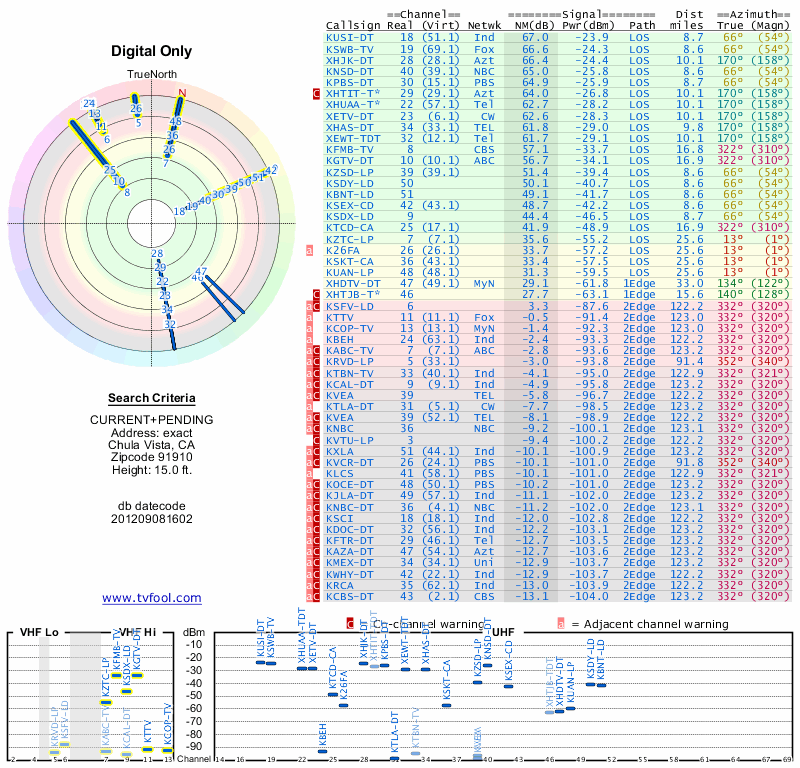

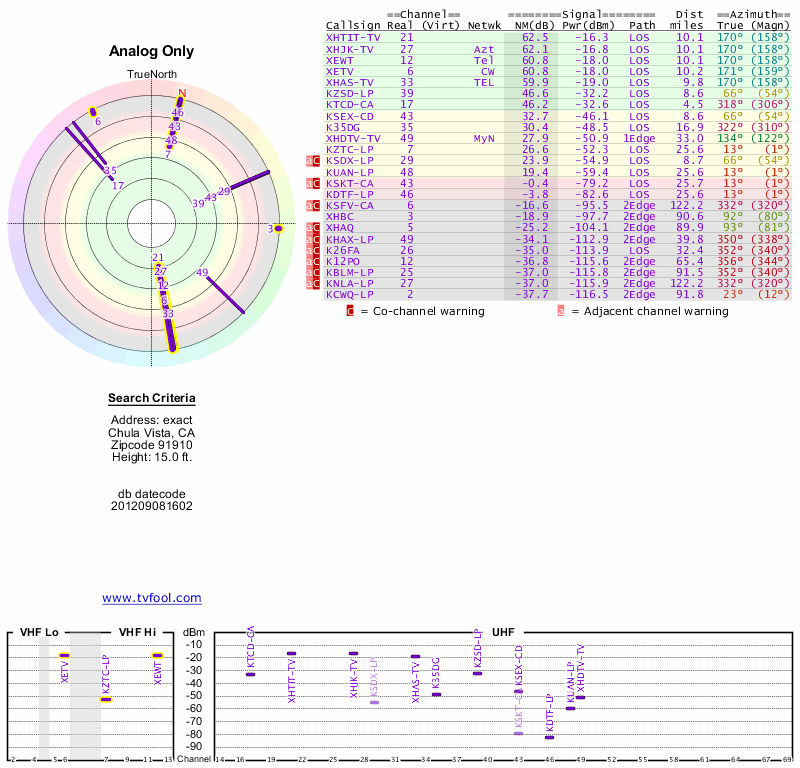

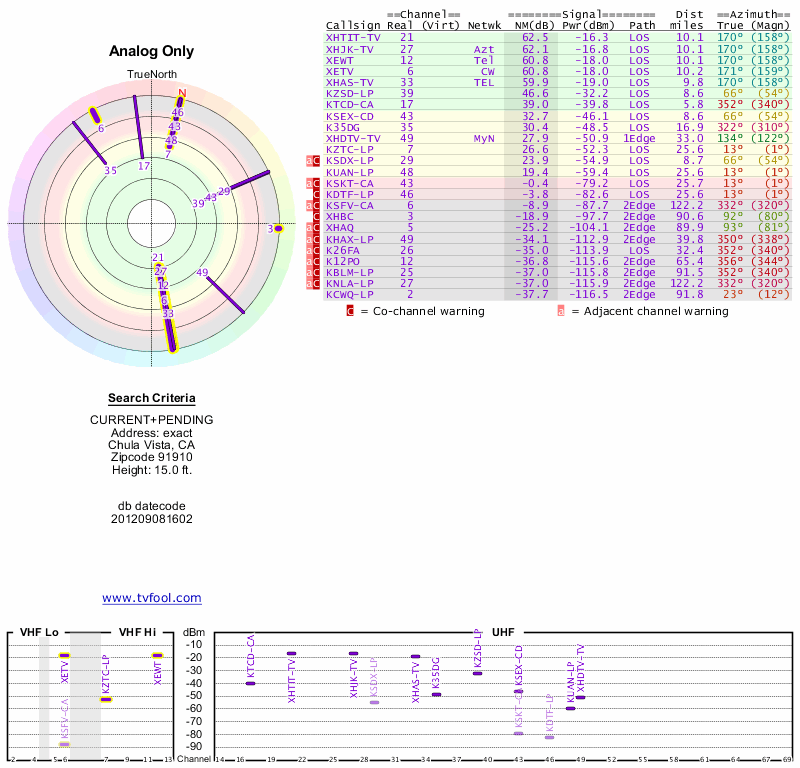

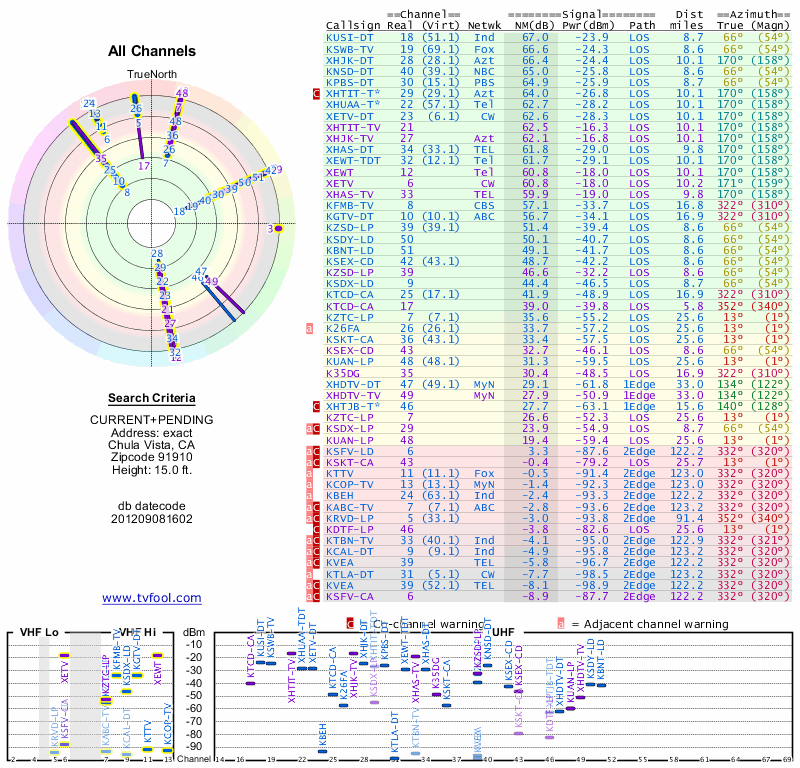

The Signal Analysis Report lists the broadcasters in your area, ranked from strongest to weakest, according to 3D propagation modeling of the location and height (optional) that you entered. The background color of each transmitter in the table is color coded as follows:
|
Background color |
Estimated signal strength |
|---|---|
|
Green |
An indoor "set-top" antenna is probably sufficient to pick up these channels |
|
Yellow |
An attic-mounted antenna is probably needed to pick up channels at this level and above |
|
Red |
A roof-mounted antenna is probably needed to pick up channels at this level and above |
|
Grey |
These channels are very weak and will most likely require extreme measures to try and pick them up |
Please understand that this is a simulation and can only be treated as a rough approximation. Reception at your location is affected by many factors such as multipath, antenna gain, receiver sensitivity, buildings, and trees - which are not taken into account. Your mileage may vary.
For additional details, go here.
To start over, click here.
